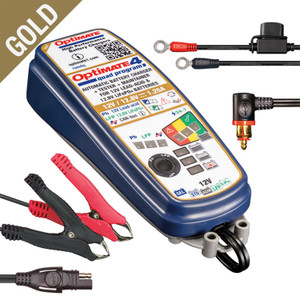

OptiMate 4 Quad Program

OptiMate 4 Quad Program is the ultimate battery charger for 12V lead-acid and 12.8V lithium batteries on your motorcycle, ATV and other power-sport vehicles.

Quad Program - select program 2 or 4 to charge through the BMW controlled 12V socket or program 1 or 3 for your Triumph socket or direct to the battery. *Requires optional cable to charge via the accessory socket.

Select your battery type and the OptiMate 4 Quad will go through its fully automatic multi-step program to bring the battery safely to full charge.


FEATURES

•  For all 12V powersport battery types including lead acid (Pb), STD (with filler caps), AGM, GEL (sealed VRLA) and Li-Ion made with LiFePO4/LFP technology
•  BMW motorcycle CanBus compatible with automatic activation
•  Smart desulphation from 0.5V for Pb battery
•  Safe to leave connected. Full electronic protection
•  Maintains battery at full charge for good health
•  Low voltage recovery and BMS reset for LFP battery
•  Tests battery state of health
•  Energy saving technology
- Stand-by power less than 0.5W
- Efficient 24-7 battery maintenance
•  IP54 weatherproof. Rated for use down to -40°c


SPECIFICATION

IDEAL FOR: AGM, GEL & STD 12V batteries from 4 – 60Ah and lithium (LiFePO4) 12.8/13.2V batteries from 2 – 15Ah
CHARGING AMPS: 1.25A (constant current)
CHARGING VOLTS: nominal: 12V & 12.8V range: 0.5V - 14.4V
OPERATION:  Selectable, 4 charge programs:
-  12V 1) Smart desulphation: 0.5V-14.4V   2) BMW CanBus compatible: 5V-14.4V
-  12.8V:  3) Low volt recovery: 0.5V-14.4V   4) BMW CanBus compatible: 8.8V-14.4V
STEPS: 9
Lead-Acid:
- Low volt start (from 0.5V)
- Protection
- Test before charge
- Save sulphated battery
- Save pulse
- Charge
- Optimize equalize cells
- Test after charge
- Maintain 24/7

Lithium:
- Low volt start
- Manual activation
- Test before charge
- Save low volt battery
- Save monitor cells
- Charge LFP
- Optimize final charge
- Test after charger
- Maintain 24/7
FEATURES: OptiMate 4 Quad Program tests before and after charging and can recover a dead flat lead-acid and lithium (LiFePO4) battery from as low as 0.5V
USE: Indoor / outdoor (lowest temperature: -40°F / -40°C).
INPUT: Global (100-240V 50-60Hz), high efficiency (CEC listed).
STYLE: Weatherproof case with wall mounts, with 180cm AC supply lead and 180cm charge lead ending in SAE connector.
SAVE: Low volt start of 0.5V + 2 step* desulphation recovery (*1 step low volt pulse save during CanBus mode)
SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.
INCLUDED: Weatherproof battery lead, battery clip set and hanging hook
WARRANTY: 3-year limited replacement warranty.
Manufacturer Part Number: TM632


Click HERE for the OptiMate 4 Quad manual
